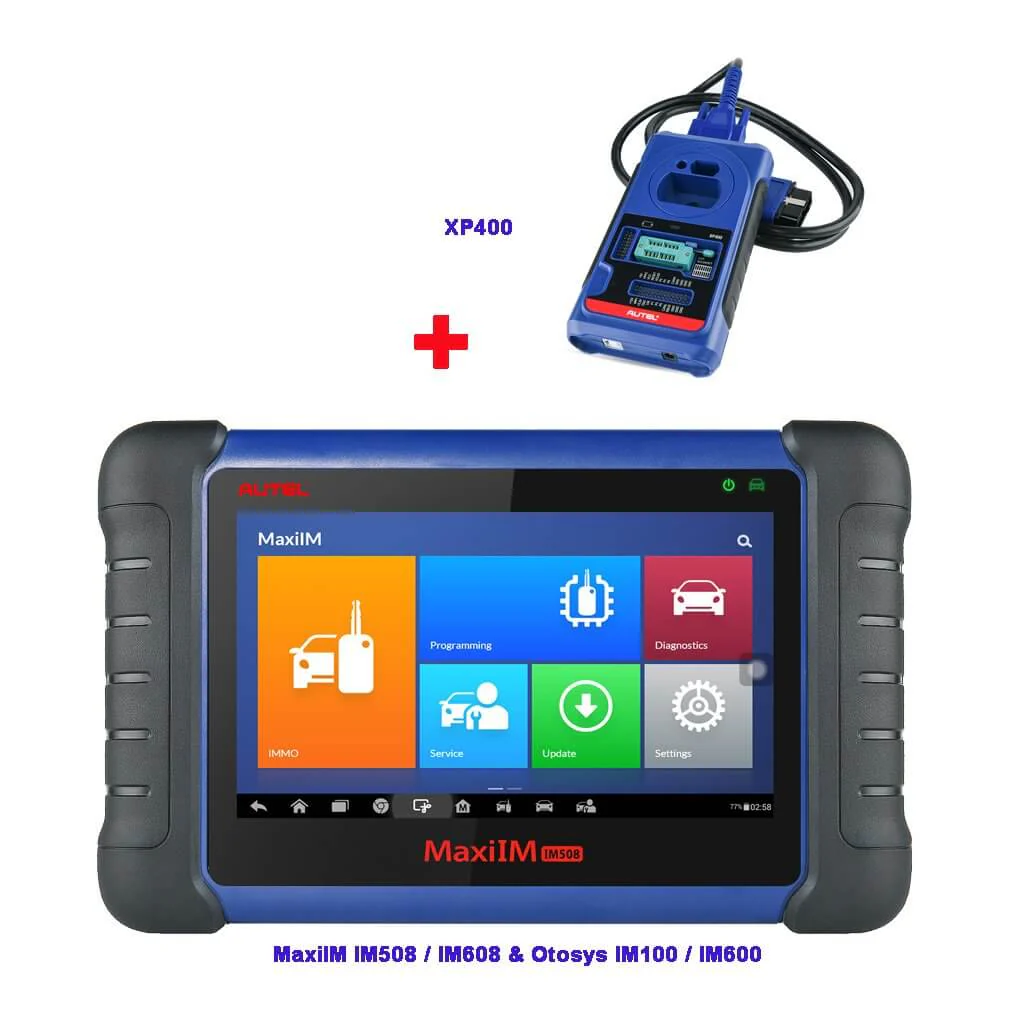

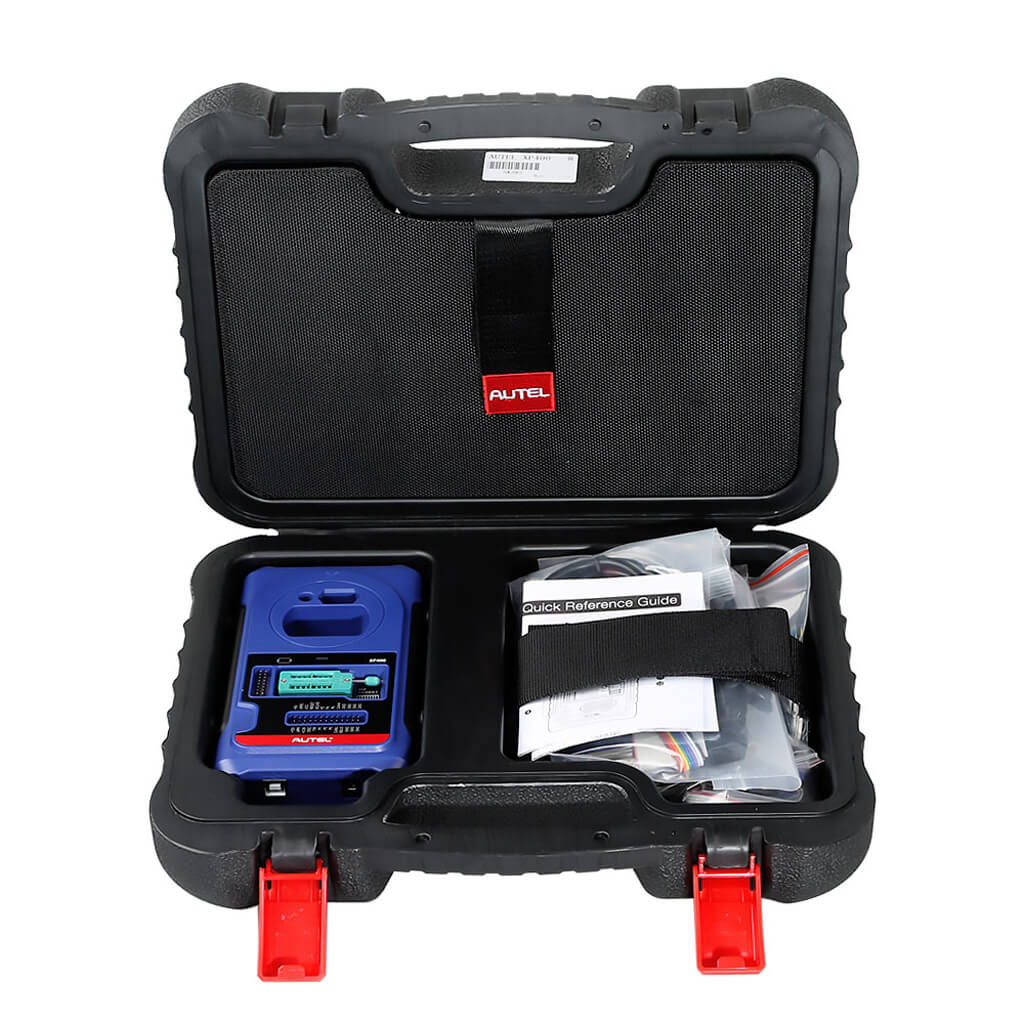

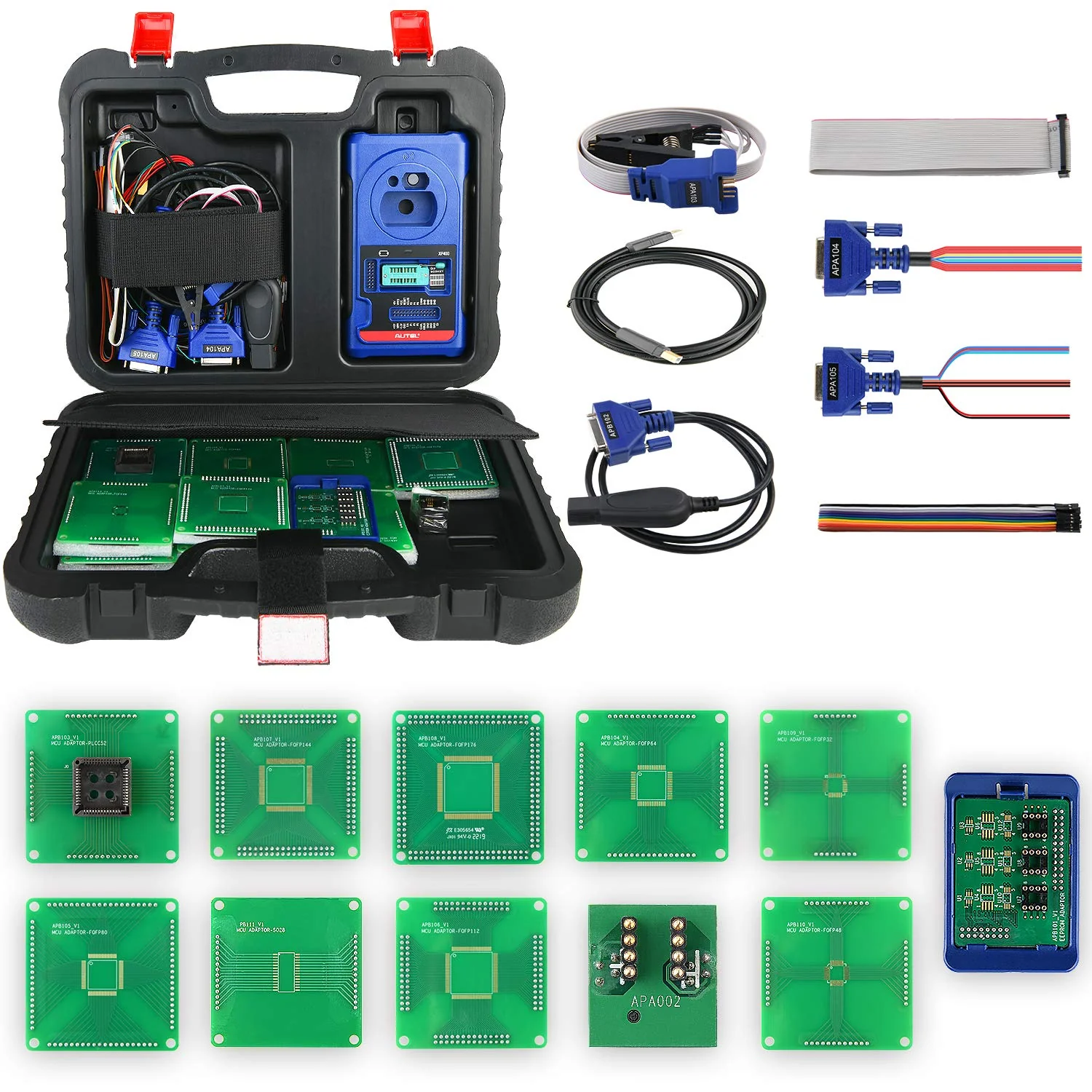

Autel XP400 Key and Chip Programmer VCI Dongle Adapter for MaxiIM IM508 IM608 IM100 IM600 IMMO Key Reprogramming Tool

Note ! ! !

The MMX-Sensor 315MHz has been discontinued and unavailable, We recommend you it's latest upgraded version - Autel 1-Sensor 2 In 1 MX-Sensor.

Autel 1-Sensor 2 In 1 MX-Sensor 👉 https://www.diagmart.com/collections/tpms-diagnostic-tools/products/autel-1-sensor-2-in-1-mx-sensor

[discontinued]

Autel MX-Sensors 315MHz

Autel 315MHz Mx-sensors are affordable and easy to use programmable universal TPMS sensors. Autel MaxiTPMS tools can wirelessly activate, diagnose, program, and relearn all the Autel MX-Sensors. Autel guarantees that the 315Mhz sensor is free from material and manufacturing defects for a period of twenty-four (24) months or for 24,000 miles, whichever comes first

Autel Value Advantage

1. Covering 98% of all OE sensors on the market
2. Wireless sensor programming with Autel TPMS service tools
3. 100% ID clone-able sensor with no re-learn required
4. Independently tested and certified to meet SAE standard

Autel MX-Sensor 315MHz Features:

1. Built to perform like OE sensor, in terms of signal, durability and functionality;
2. Automotive battery grade to meet severe weather conditions;
3. High-precision air valve to prevent air leakage;
4. Replaceable aluminum valve stem is anodized for corrosion resistance;
5. Robust clamp-in pivoting stem design allows for 0-35 degree angle adjustment to fit all types of wheels;
6. Fast and simple assembly onto any wheels.

Autel 315MHz Sensor Works with Autel MaxiTPMS TS501 / Autel MaxiTPMS TS508K

How does Autel MX-Sensor Work?

315Mhz MX-Sensors Specification:

Battery Life	≥5 years
Operating Temperature	-40°C to +125°C
Storage Temperature	-40°C to +150°C
Operating Humidity	90%
Operating Frequency	315 MHz
Pressure Monitoring Range	100 to 900 kPa
Pressure Reading Accuracy	±10 kPa
Temperature Reading Range	±10 kPa
Pressure Reading Accuracy	±10 kPa
Pressure Reading Accuracy	-40°C to +125°C
Temperature Reading Accuracy	±5°C
G Sensor Reading Accuracy	±15%
Transmission Power	5-8 dBm
Battery	3.0 V
Dimensions (W x H x D)	55.1 mm x 29.4 mm x 21.8 mm (Clamp-in Sensor)
Weight (Without Valve)	18.5 g (Clamp-in Sensor)
Package Includes	MX-Sensor 315MHz (Quantity Optional)
